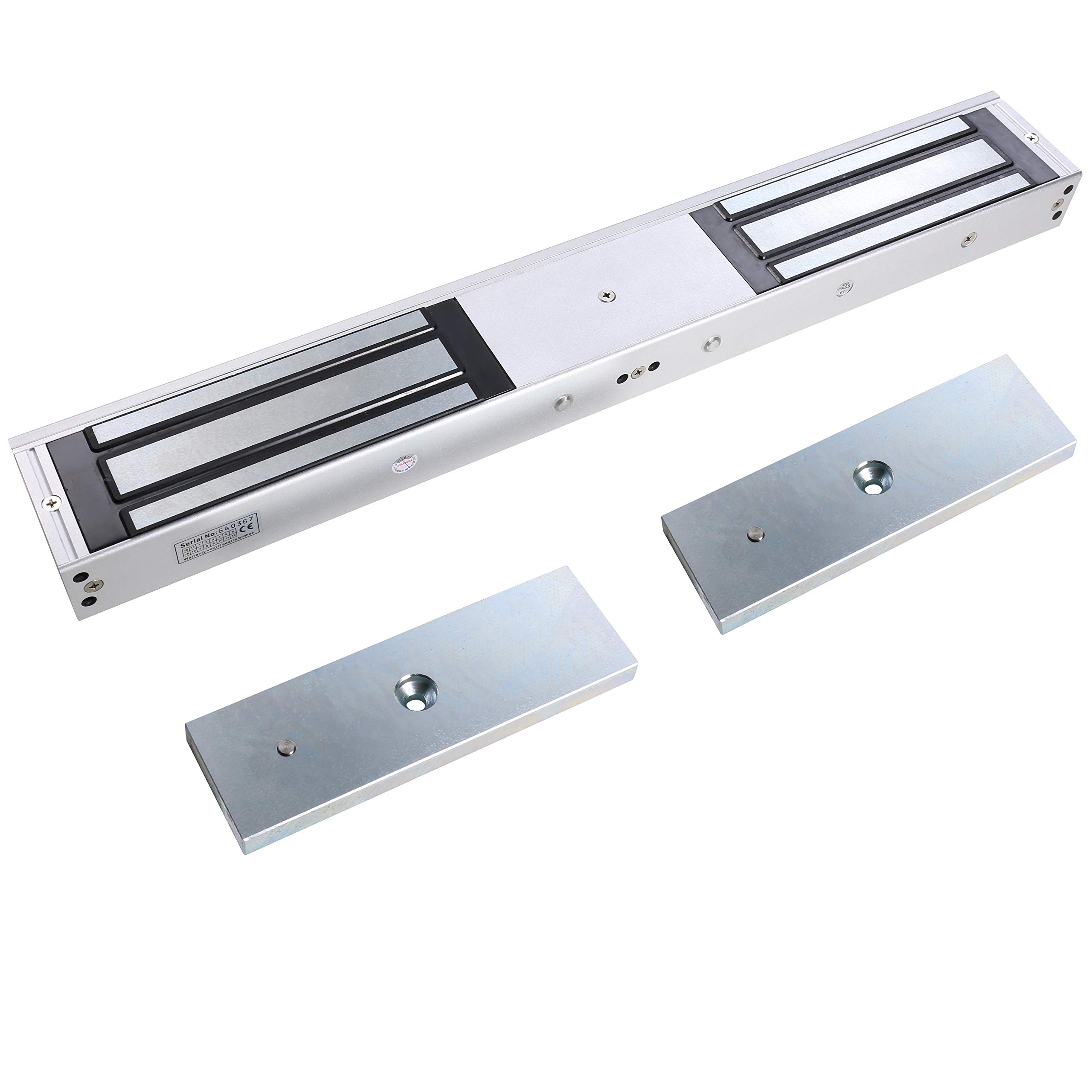

UHPPOTE 500Kg/1200Lbs High Security Electric Magnetic Double Door Lock - Ideal for Commercial Buildings, Offices & Smart Home Access Control Systems

Advantage:Collinear Load Test 500x2kg / 1200x2lb Dual Voltage 12 or 24 VDC(optional) The Standard Voltage is 12VDC when Finished MOV Provides Reverse Current Protection Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door LED Indicates the Door Status Lock Status sensor (NO/NC/COM) Anti-Residual Magnetism Designed High Strength Material,Anodized Aluminum Housing Design without Mechanical Failure Increase the holding Force,Dual Insulative HousingSpecifications: Size: 530Lx71.8Wx38.8H(mm) / 20.87Lx2.83Wx1.53H(in) Armature plate: 185Lx60Wx13H(mm) / 7.28Lx2.36Wx0.51H(in) Holding Force: 500kgx2 / 1200Lbsx2 Voltage: 12 or 24VDC Current Draw: 12V/500mA*2 or 24V/250mA*2 Signal Output: Dry Contact,Max Rating of Contact Current 3A LED: Red indicates the door is unlock,Green indicates the door is lock Suitable for: Wooden door, Glass door ,Metal door, Fireproof door Surface Temp: Less than +50℃ / 122℉ Operating Temp: -10℃~+55℃(14℉-131℉) Suitable Humidity: 0~95%(non-condensing) Finishes for Shell: Anodized aluminum Finishes for Magnetic: Zinc Finishes for Armature: Zinc Weight: 9.0kg / 19.84lbPackage includes: 1 x Lock 1 x Installation Kit 1 x User Manual
