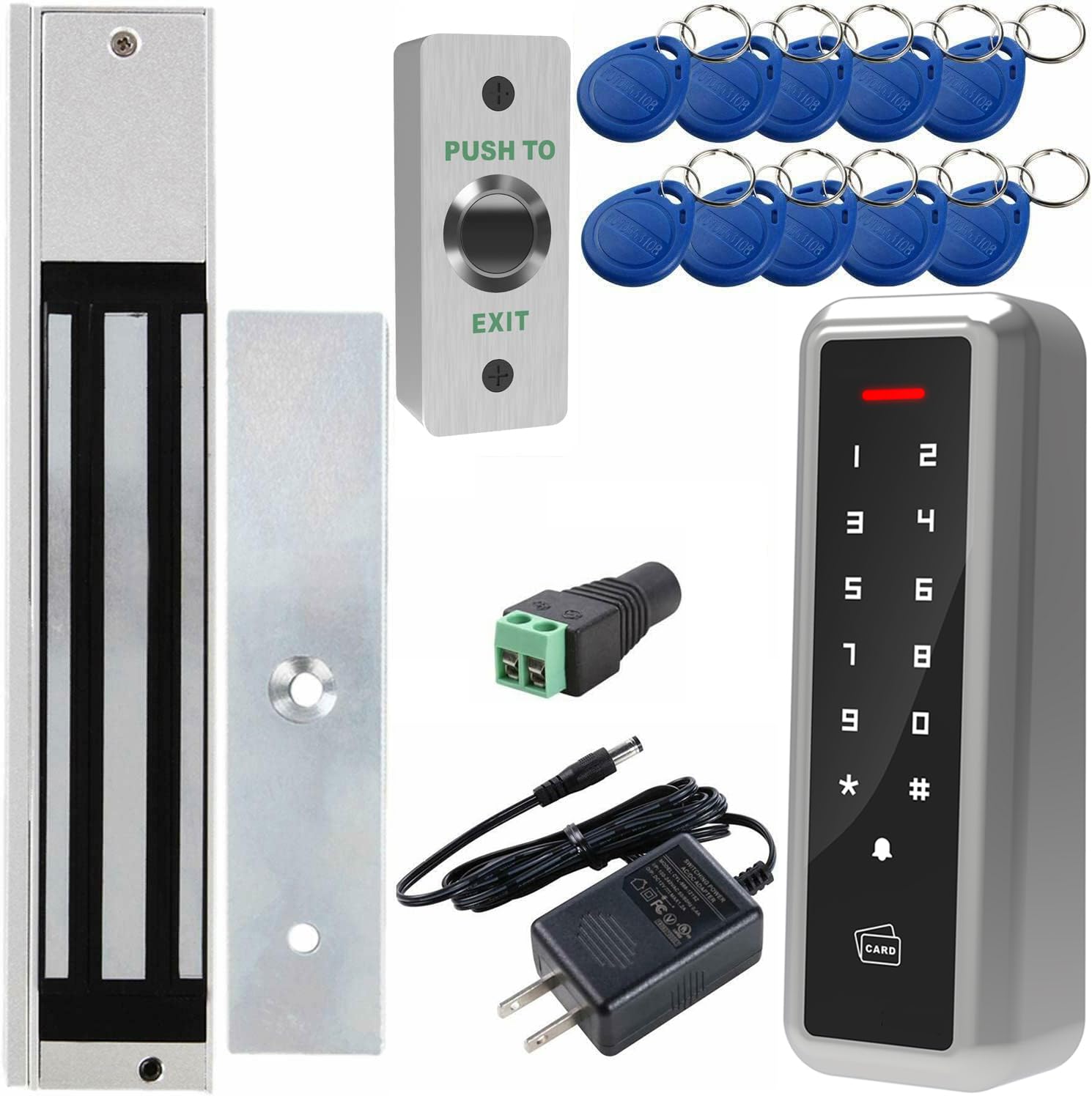

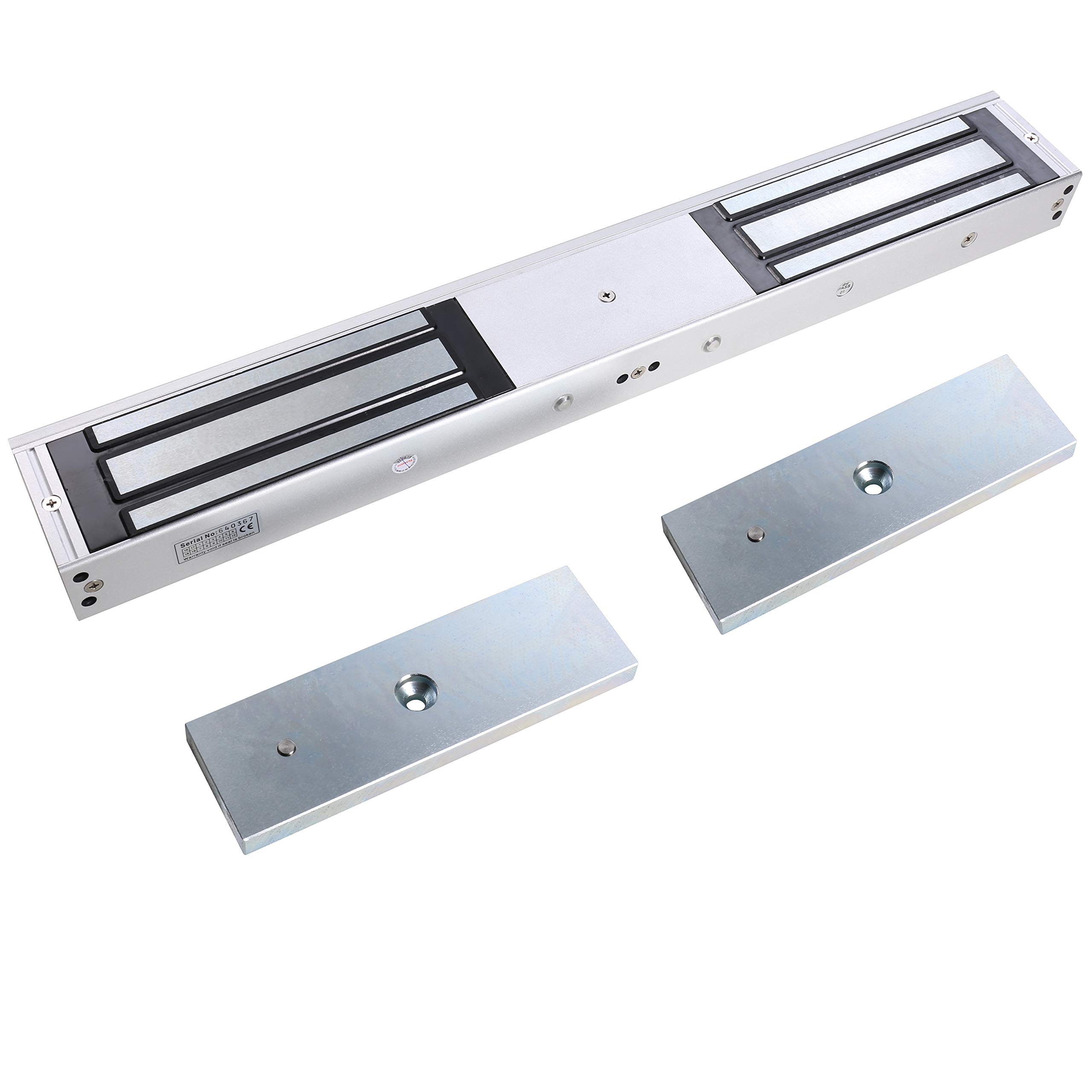

UHPPOTE Outswinging Door Access Control System with Touch Keypad & 600lbs Electromagnetic Lock - Secure Entry for Offices, Schools, and Commercial Buildings

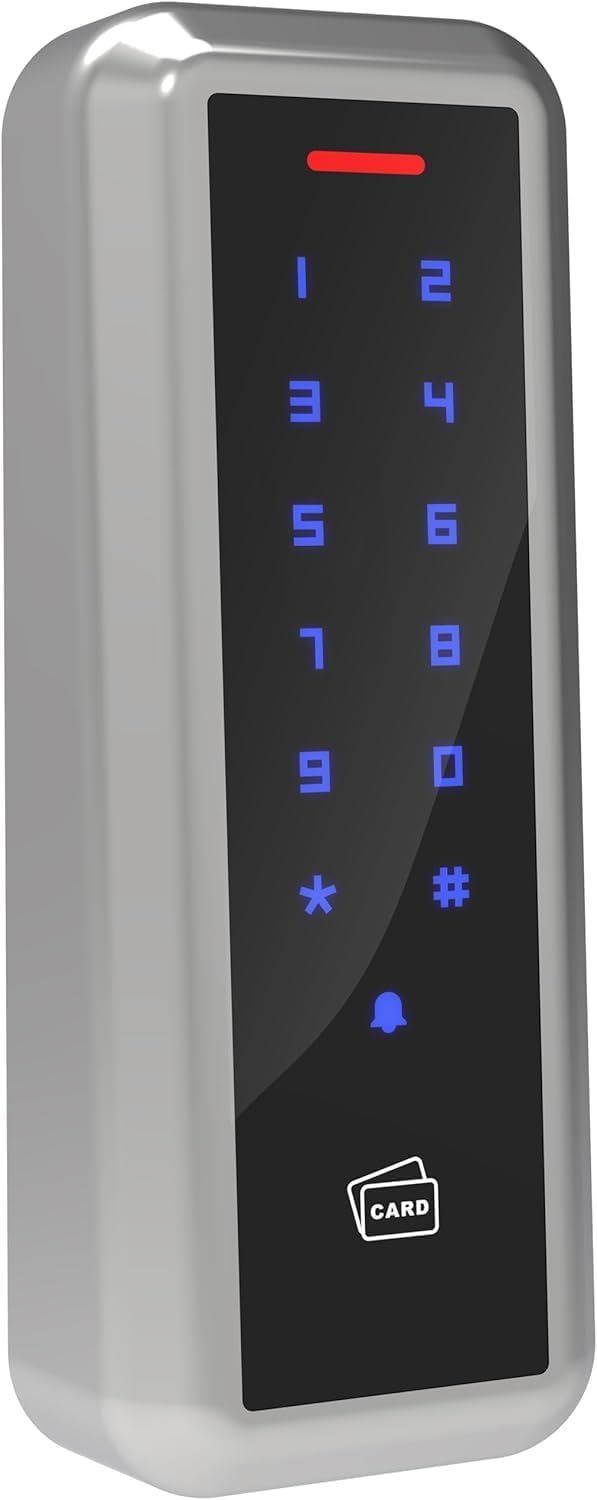

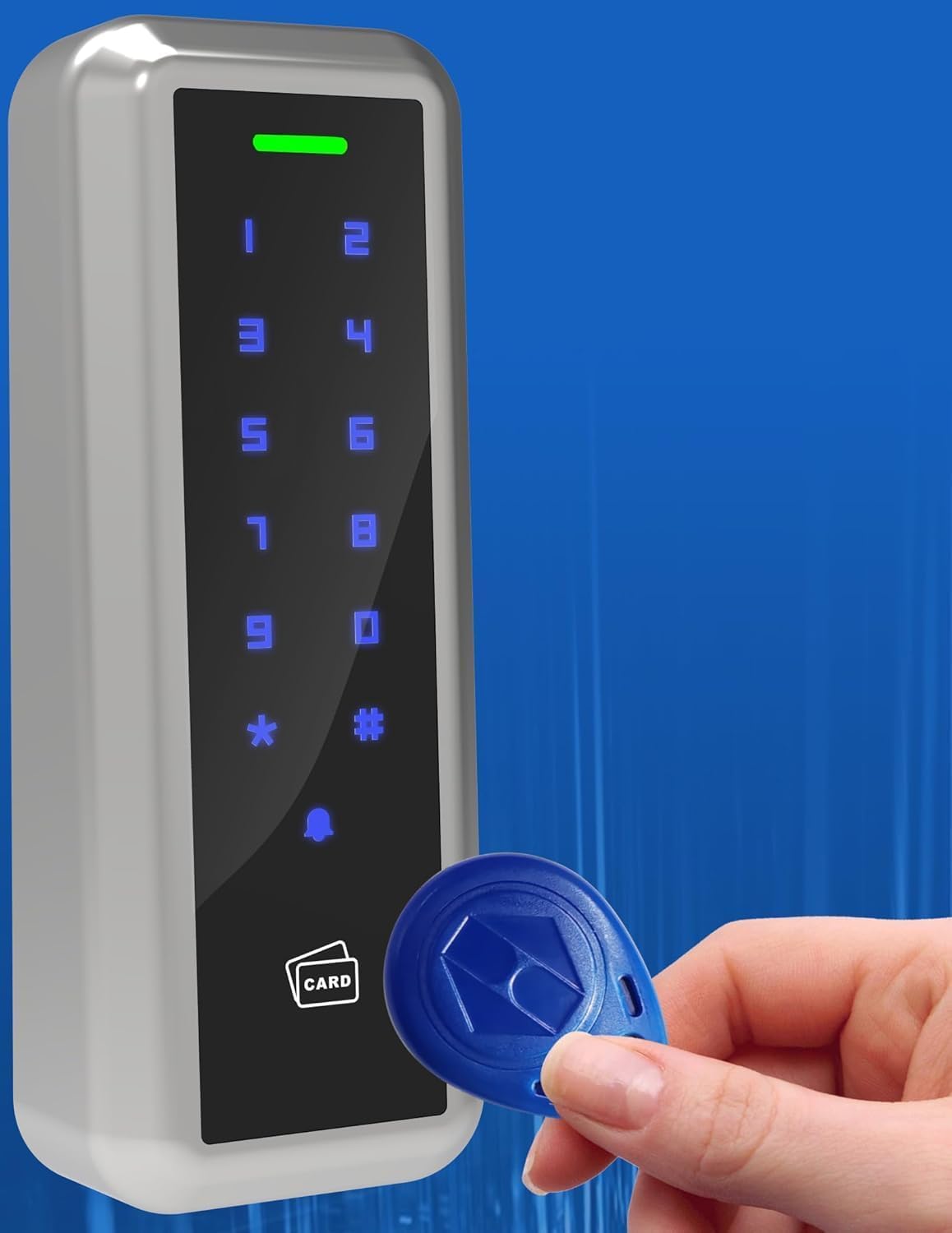

INTRODUCTION The HBK-A06T is a single door multifunction standalone access controller or a Wiegand output keypad or card reader.It is housed in a strong, sturdy and vandal-proof zinc alloy enclosure. The electronics are fuly potted, so the unit is waterproof and conforms to IP66. Weatherproof and vandal resistant, indoor or outdoor use available.The keypad numbers are easily to be seen at night or in dark environment thanks to the backlighting. The backlight can be turned off according to your needs.Full programming from the keypad.Supports Card, PIN, Card + PIN, Card or PIN.Can be used as standalone keypad.Adjustable door open time.Very low power consumption.Backlit keys.Lock output current short circuit protection.With bell function, supports external bell.Audible keystroke echo.Red, blue, white, yellow and green LED indicators display the working status.Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller. SPECIFICATIONS Operating Voltage 12VDC Idle Current 50mA Card Type 125KHz ID card Lock Output Load Max. 1.5A Door Open Time 0-99 seconds (adjustable) Card Capacity 2000 PIN Capacity 500 Card Reading Distance Max. 25/32" Waterproof Level IP66 Operating Temperature -22℉-140℉ Operating Humidity 10%-90%RH Enclosure Material Zinc Alloy Product Weight 1.41lbs Dimensions 6-13/64"x2-23/64"x1-29/64" Compatible Cards EM standard card (Can't support some encrypted cards, such as HID, Cobra, APCiK, etc.) ELECTROMAGNETIC LOCK Lock Body Dimensions (LxWxH): 9-27/32"x1-59/64"x1-3/32" (250x48.8x27.9mm)Armature Plate Dimensions (LxWxH): 7-3/32"x1-17/32"x33/64" (180x38.8x13mm)Holding Force: 600lbs (280kg)Input Voltage: 12 or 24VDCCurrent Draw: 12V/520mA or 24V/260mALED: Red shows locked; Green shows unlockedSignal Output: Lock signal (NO/NC/COM)Suitable: Wooden door, glass door, metal door, fireproof doorThickness of Door Leaf: 1-31/32" (50mm) EXIT BUTTON Dimensions (LxWxH): 3-35/64"x1-3/8"x1-3/64" (90x35x26.5mm)Standard Structure: Stainless steel panel, steel buttonMechanical Life: 500000 testsCurrent Rating: 3A@36VDC Max.Output Contact: NO/COMOperating Temperature: 14℉~131℉ (-10℃～55℃)Operating Humidity: 0-95% (relative humidity)Panel Material: Stainless steel panel, wire drawing finishedSuitable for hollow door POWER ADAPTER Type: 12V 1A Power Supply Wall ChargerInput: AC100V-240V 50/60HzMax Output: DC12V / 1A (1000mA)AC Cord Length: 4 feet (1.2 meters)Wire Type: 22AWGOutput Transformer Adapter : 5.5x2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)Net Weight: 2.3oz (66g)Certificate: FCC PACKAGE LIST 1 x Access keypad 1 x Electromagnetic lock 1 x Power adapter 1 x Exit button 10 x RFID keyfobs BACKLIT KEYPAD The keypad numbers are easily to be seen at night or in dark environment thanks to the backlighting.The internal buzzer is used to indicate feedback, and the red, blue and green LED light indicates the different working status of the keypad.The backlighting and audible keystroke echo can be turned off according to your need.
