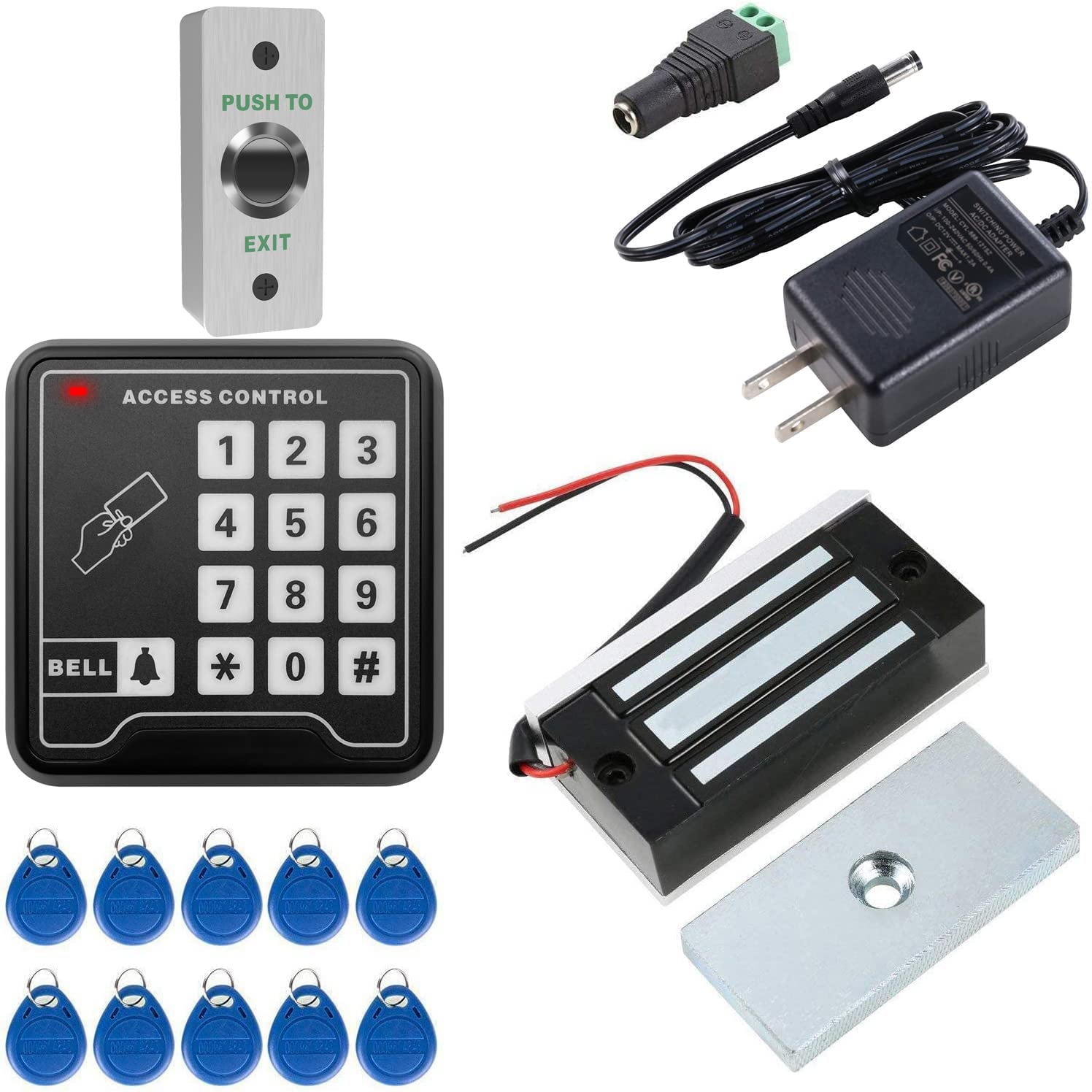

UHPPOTE RFID Door Access Control System - 130LB Electromagnetic Lock for Home & Office Security | Smart Entry Solution for Apartments, Gated Communities & Commercial Buildings

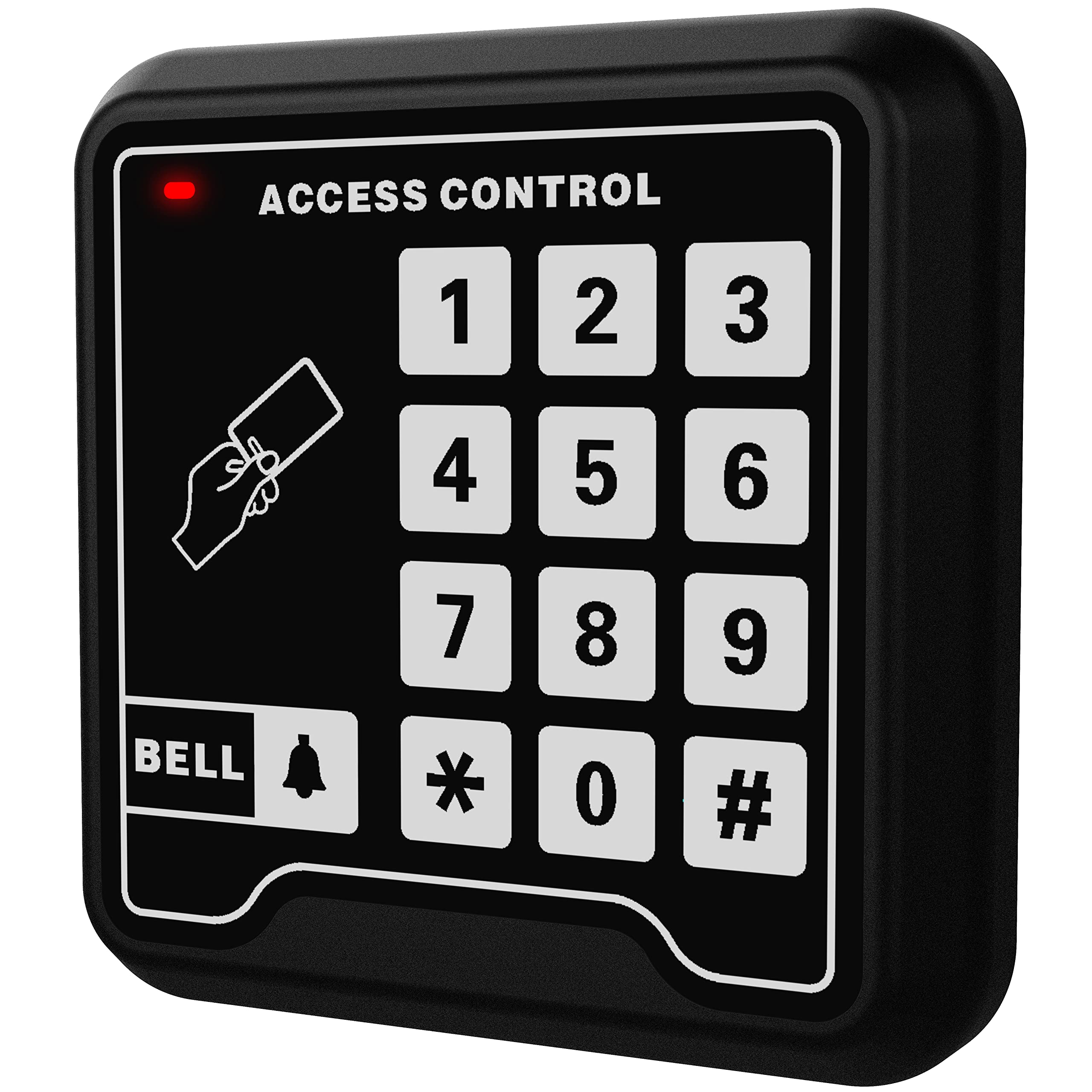

Features: Support One-door Can be used as a stand alone keypad Dual units can be interconnected and interlocked 500 users, supports Card, PIN, Card + PIN Doesn't need to connect on the computer, can works aloneAccess Control Keypad: COperating Voltage: 12VDC RFID Card Capacity: 500 User PIN Capactity: 500 PIN Digits: 4-8 digits Card Type: Standard 125KHz EM Door Relay Time: 0-99 seconds Compatible Cards: EM compatible card (Can't support some encrypted cards,such as HID, Indala, Cobra, APCiK ,Paradox, Radio, Honeywell, etc.) Waterproof: Not support Keypad Backlight: Not support Shell Material: Plastic Card Reading Distance: Max. 6cm (2-23/64") Shell Size: 100x100x18.5mm (3-15/16" x 3-15/16" x 47/64") Door Open Options (admin user selectable):Power Adapter: Input: 100-240VAC 50/60Hz Output: 12VDC / Max1.2AMagnetic Lock: Input Voltage: 12VDC Current: 100mA Holding: 60KG/130Lbs Dimensions: Approx. 3.15(W)x1.6(H)x1(D) inch / 80x40.6x25mm Net weight: 500g / 1.1lb NC mode - (locked while supplied with power), fail safe)Opening Mode: 90 degree swinging doorKeyfobs: Operation Frequency: 125KHz Reading distance: 3~10cm / 1.18-3.94in Standard: EM4100 compatible (Can't support HID, Cobra, APCiK etc) Each keyfob has an unique ID number. Read only and not rewritableExit button:Dimensions(LxWxH): 90x35x26.5(mm) / 3-35/64"x1-3/8"x1-3/64"Current Rating: 3A@36VDC MaxOutput Contact: NO/COMPackage: 1 x Access control keypad 1 x Electric magnetic lock 1 x Power adapter1 x DC balun 1 x Exit button 10 x RFID KeyfobsWarm Tip: Armature Plate installed too tight will lead to result the lock weak force, recommend loosen the Armature Plate screws a little in this case.
