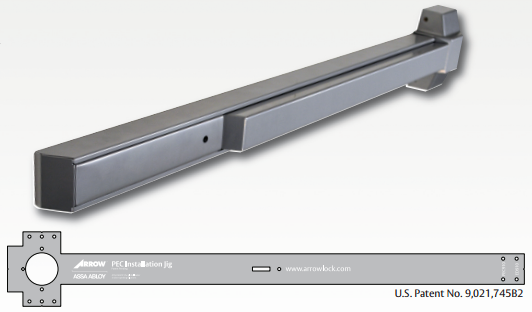

PEC910 36" Aluminum Exit Device - Heavy Duty Commercial Door Push Bar for Schools, Hospitals & Office Buildings - ANSI/BHMA Certified Safety Hardware

Arrow PEC910 36" Aluminum Exit Device In Stock Ready To Ship Free On Orders Over $189.

Precision Install with template, built-in end cap & slide-in mounting Patented Permanent End Cap and template Seamless one-piece design 10-year limited warranty Works with all Arrow S1150 and S1250 trims All metal construction For 31" to 36" door widths

Chassis: Stamped steel materials

Chassis cover: Cast zinc, seamless one piece design

 End Cap: Patented permanent End Cap (U.S. Pat No. 9,021,745 B2)

Door Types: Fits 1-3/4" (44.5 mm) doors standard.

Door Width: For 36" doors.

Stile: 4-1/2" (144.30mm) minimum

Mounting: Supplied with wood and machine screws.

Handing: Reversible

Dogging: Hex-type hold down.

Latchbolt: Stainless steel

Rail Assembly: Powder Coated Steel, stainless steel optional

Strike: ES90 Strike

Warranty:
Ten year warranty

 Trims: Works with all Arrow S1150 and S1250 trims

Packaging:
- 4 units per master carton

Installation: Installation Template can be ordered seperately.

Finishes: AL Aluminum (sprayed finish)
