UHPPOTE Electric Strike Fail Secure NO Mode Lock - Access Control Device for Wood & Metal Doors | Ideal for Office, Home & Commercial Security Systems

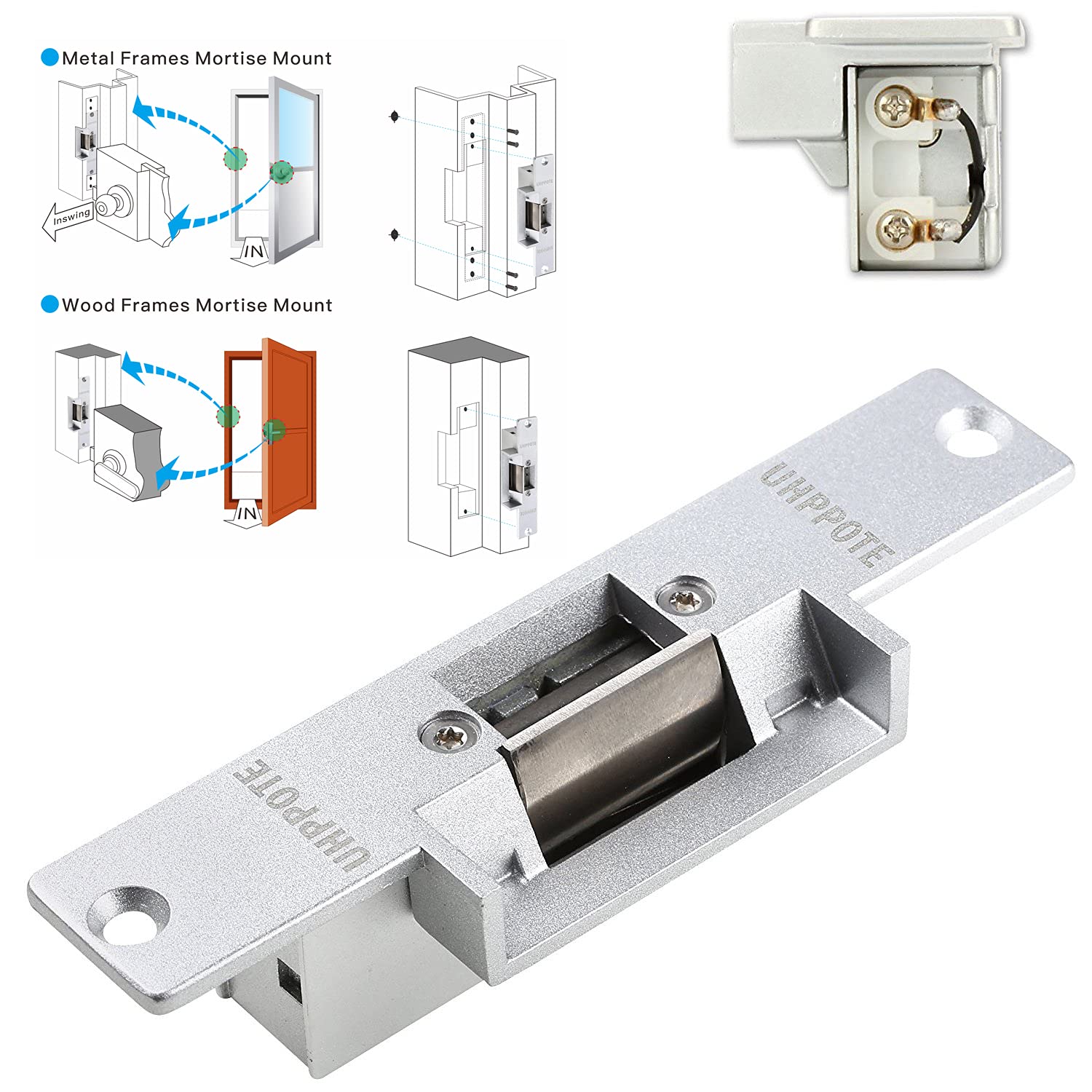

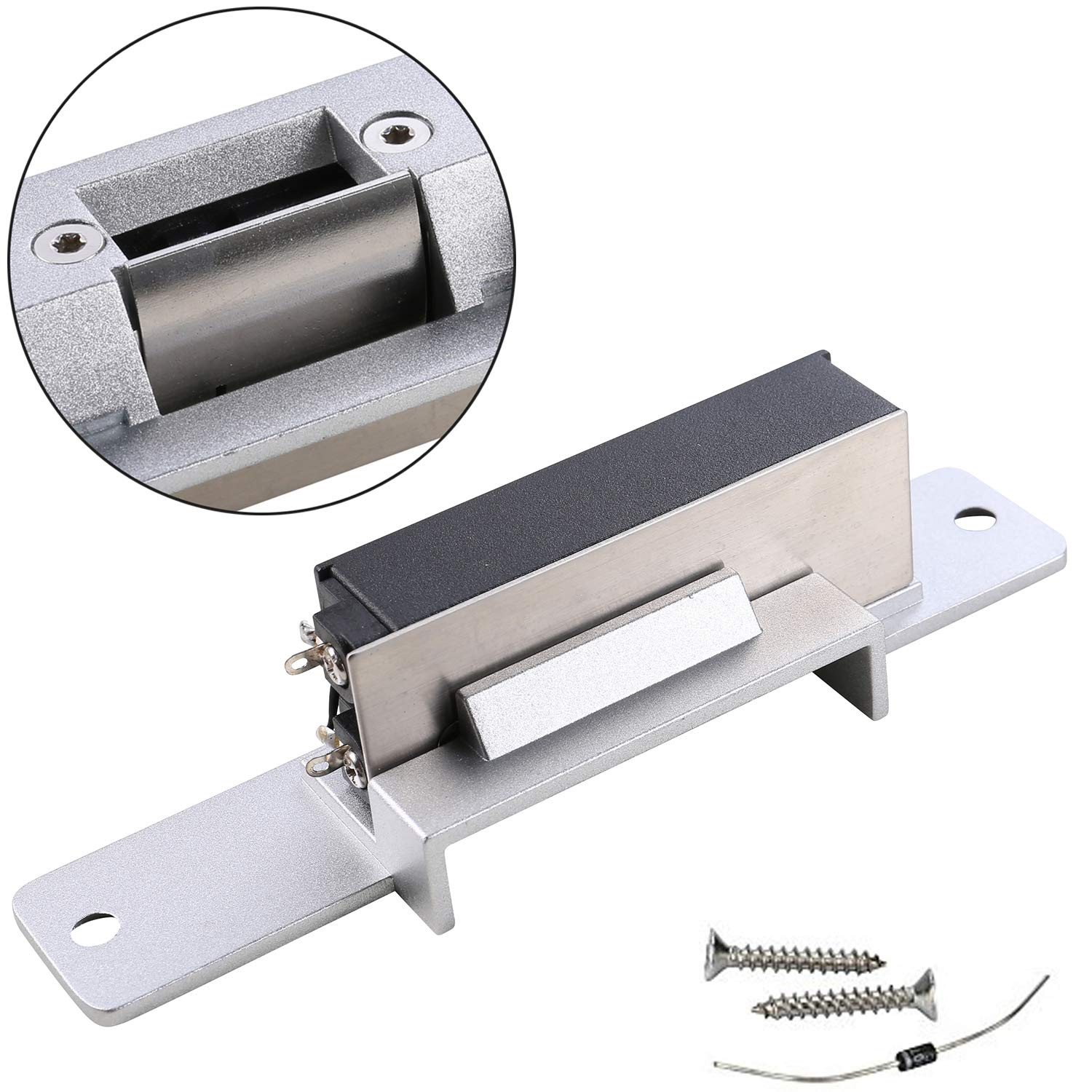

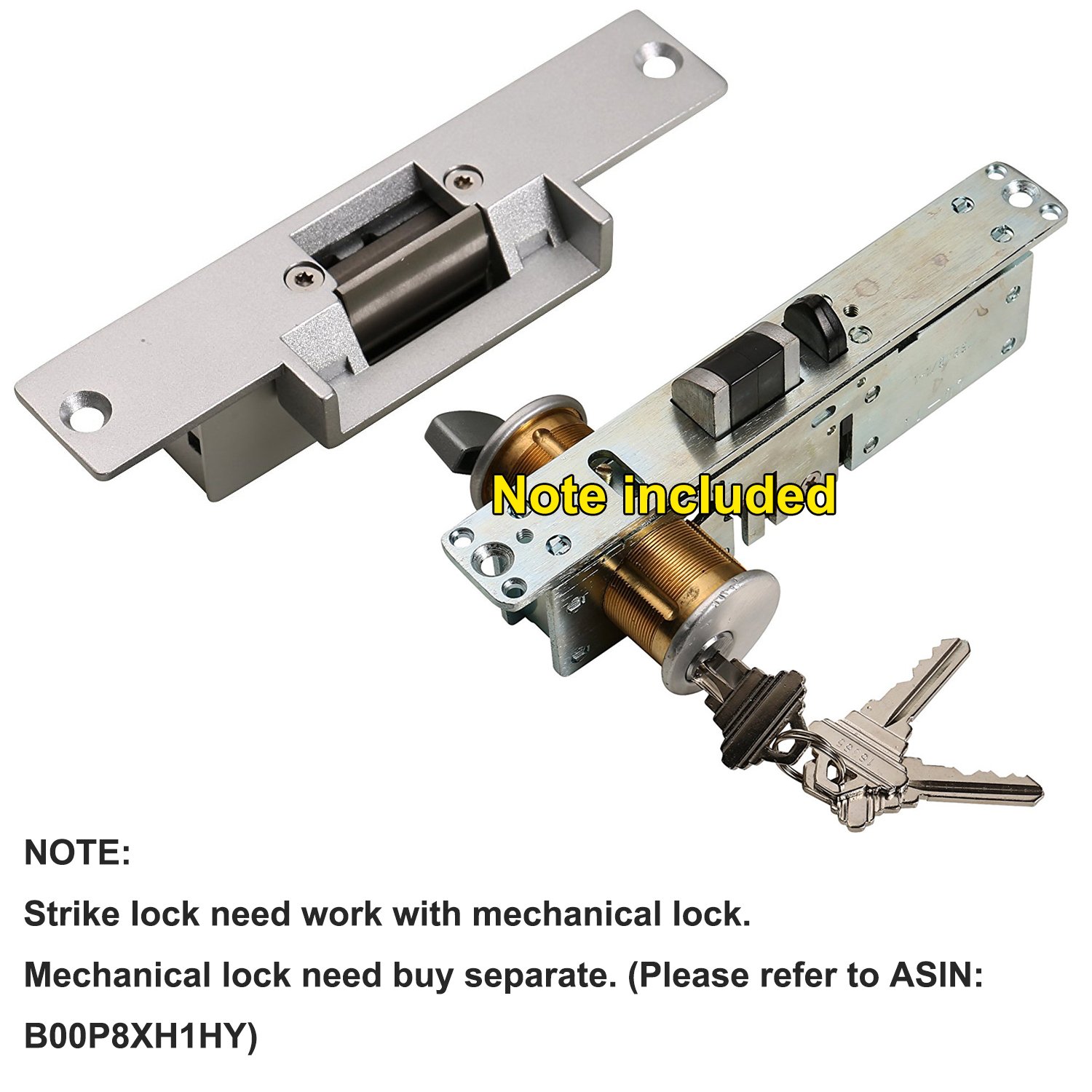

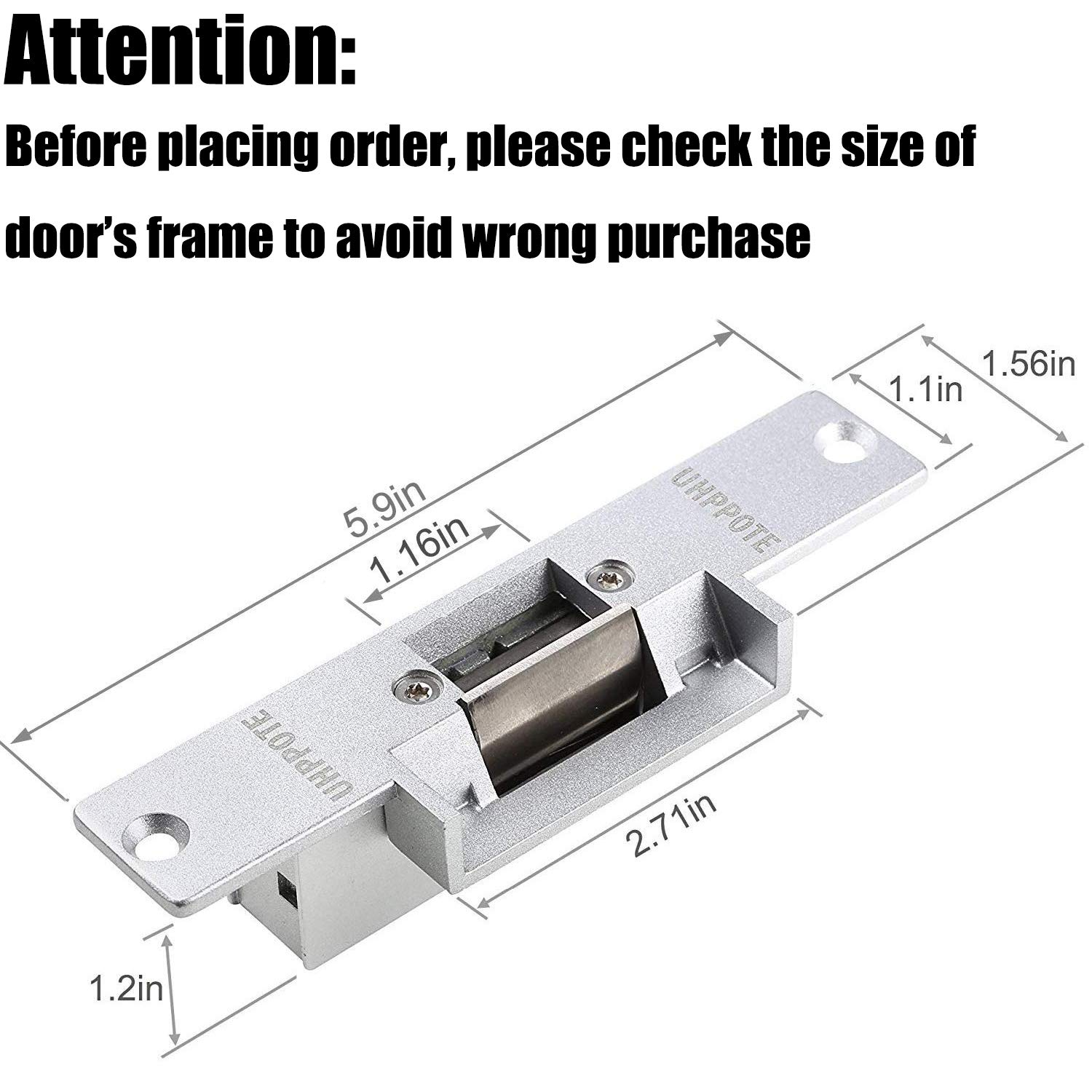

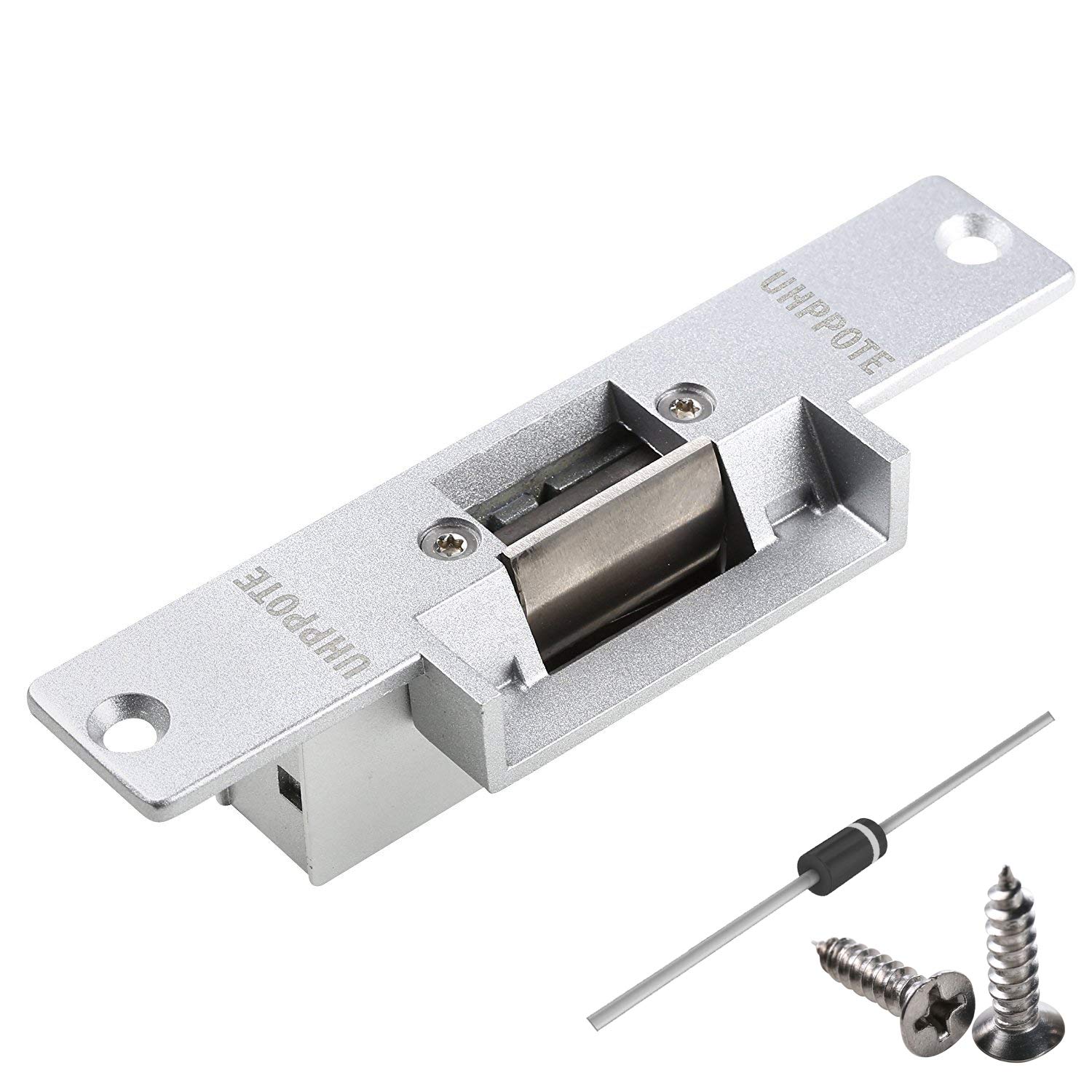

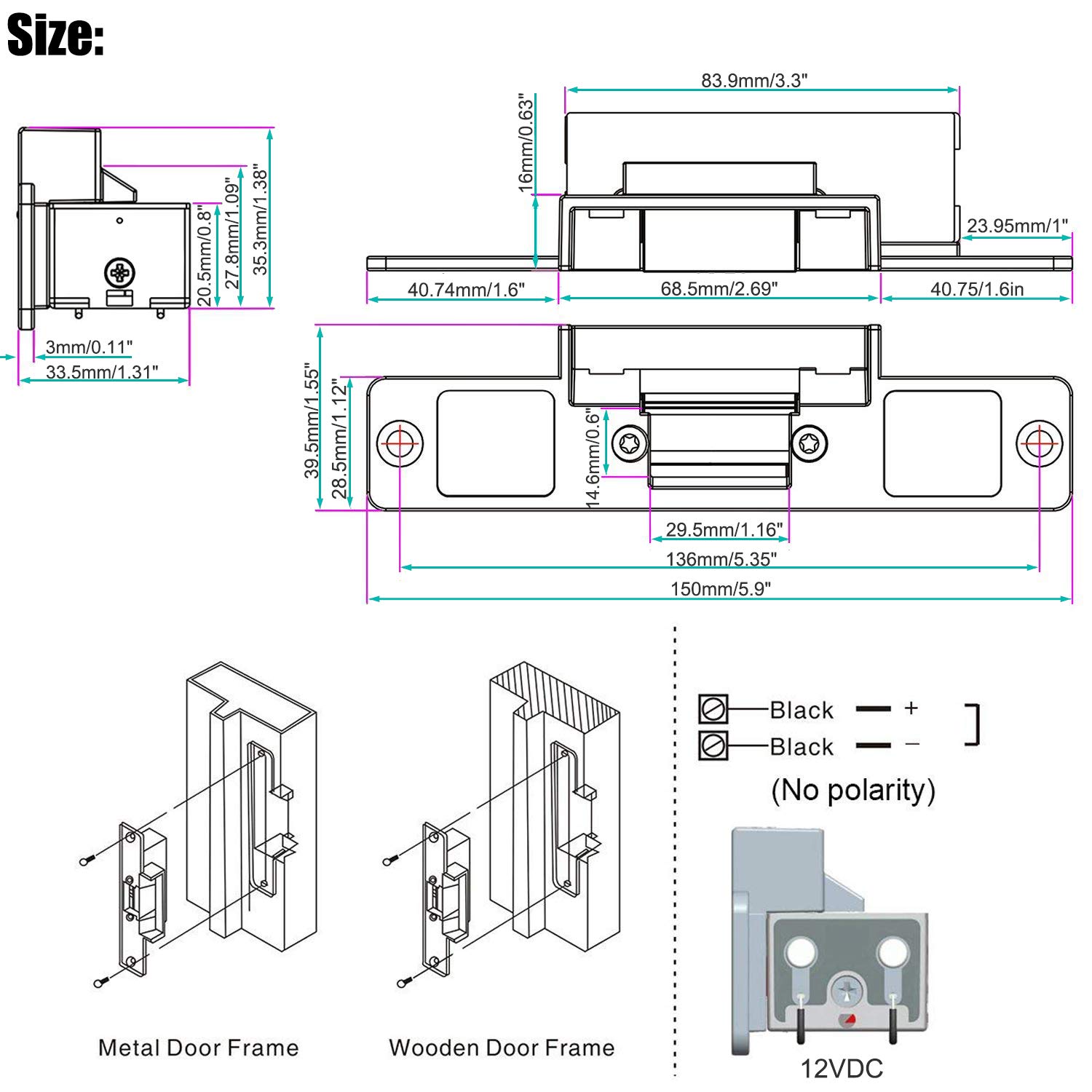

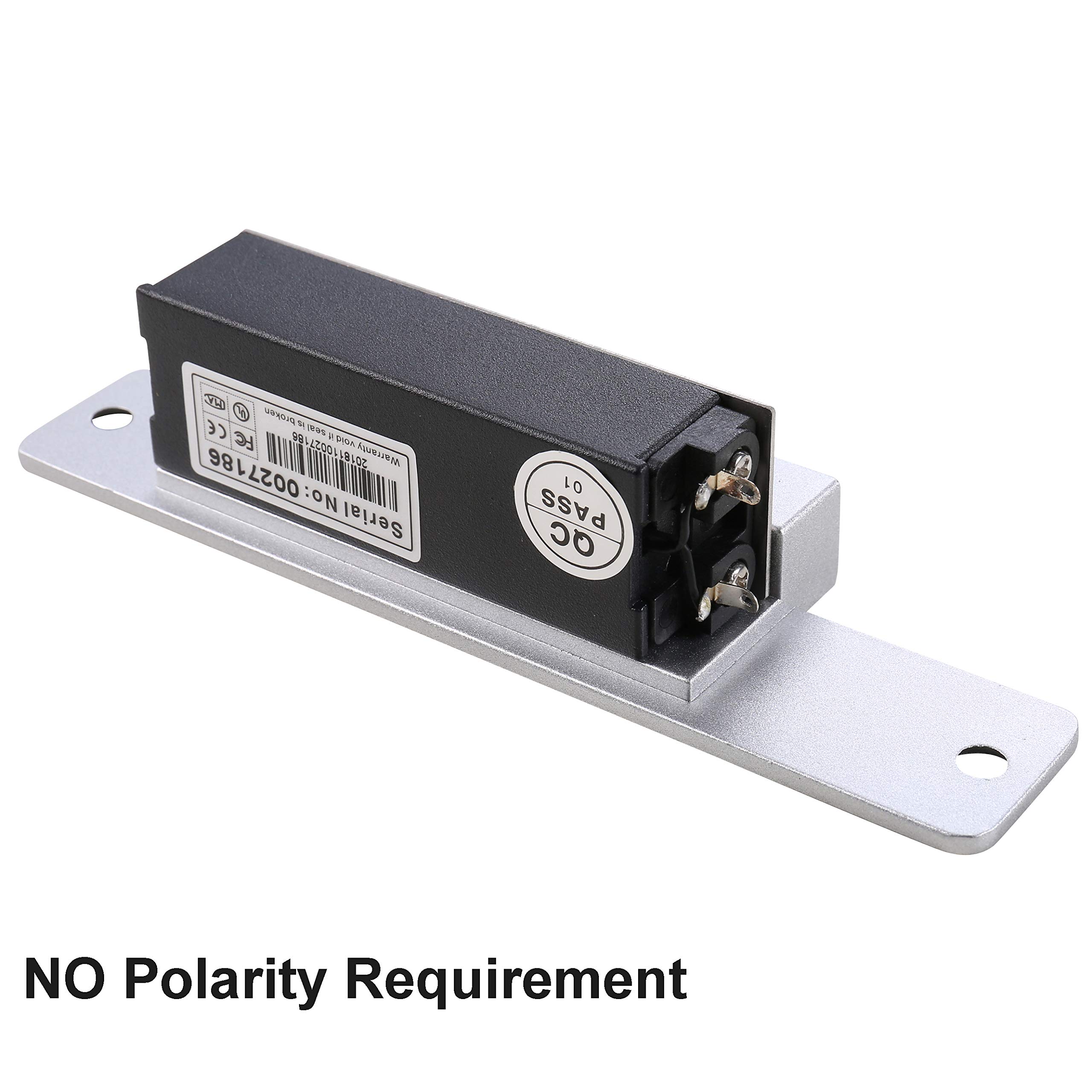

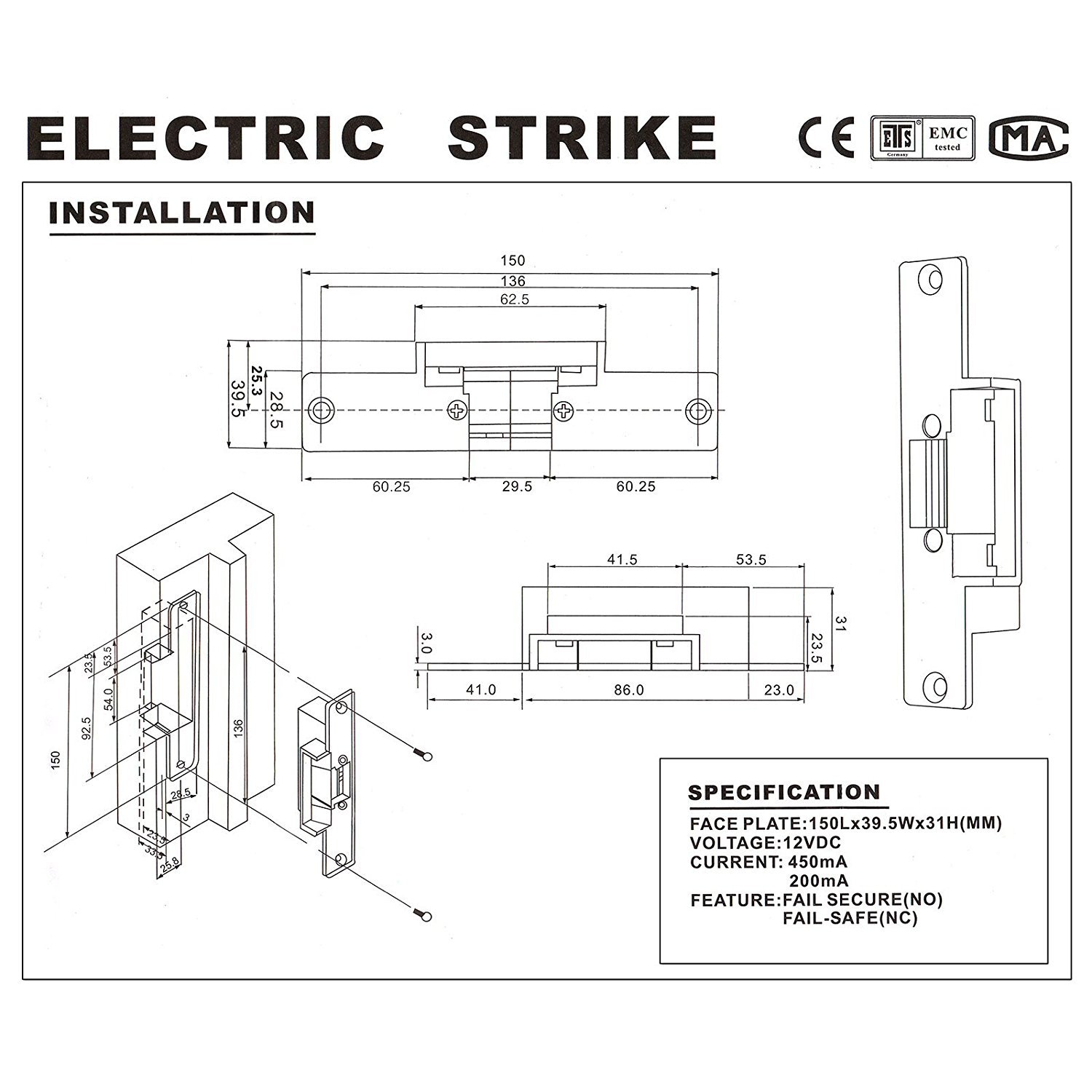

Advantage: Provides 1,000-pound holding force/static strengthAluminum, stainless steel boltTesting to 1000000 cyclesHigh-temperature painted, durable and beautiful articleCE Certificate by European Union, MA Certificate by China Public Security officeIt's a solenoid with one function, can be wired any way.The No-Cut Electric Door Strike (Fail-Secure) is used to convert a cylindrical lockset into an electronic access-controlled locking system.This "no-cut" model is specially designed to fit most metal or wooden doors with only minimal cutting required of the door frame beyond the hole for the strike.Installation is further simplified by the strike's 2-contacts, non-polarized connection to your access control or egress device, as well as its reversible non-handed design to fit either right- or left-handed doors. (This lock will be polarized when the diode added). Specifications: Faceplate Dimensions: 5-29/32"x1-1/8"x1/8" (150x28.5x3mm)It structure: Zinc alloyFinishing: ElectroplatingHolding Strength: 1100 pounds (500kg)Voltage: DC12VCurrent: 200mAFail secure, NO mode (Locked when power is removed)Suitable For: Wooden door, metal door, PVC doorSurface Temperature: Within 68℉ (20℃)Suitable Temperature: 14℉~131℉ (-10℃~55℃)Operating Humidity: 0~90% (non-condensing)Function: Built-out MOVNet Weight: 0.64lb (0.29kg) Work With Mechanical Lockset: Strike lock needs to work with mechanical lock or knob lock which should buy separately.Before placing order, please check the size of door’s frame to avoid wrong purchase. Wiring Diagram: Fail-Secure lock needs to be wired to NO and COM contact of the access control system. (Other parts shown on this photo are not included.)Powered by a solenoid, not a buzzer coil.Non-polarized connection Installtion: Suitable for metal and wooden door frameBefore placing order, please check the size of door’s frame to avoid wrong purchase. No Polarity Requirement: Uses 2-contacts, non-polarized connect to access control or egress device. Tips: 1N4004 Diode: Prevent high voltage to two ends of the electronic lock while the contact of access control unit relay disconnect. Without diode, there will be high voltage pulse interference to circuits and the life time of the access control unit relay will be greatly reduced.This lock will be polarized when the 1N4004 diode wired. More Details: Demo: Can be used with virtually any cylindrical-door locking system.Cylindrical-door locking system should buy separately. Lock Size: Faceplate Dimensions: 5-29/32"x1-1/8"x1/8" (150x28.5x3mm)Before placing order, please check the size of door’s frame to avoid wrong purchase. Package: 1 x Electric Lock (Fail-Secure Mode)1 x Diode1 x User Manual2 x ScrewsThis strike is not weatherproof and should only be installed indoors.Attention: Strike lock needs to work with mechanical lock or cylindrical lockset which sold separately.
