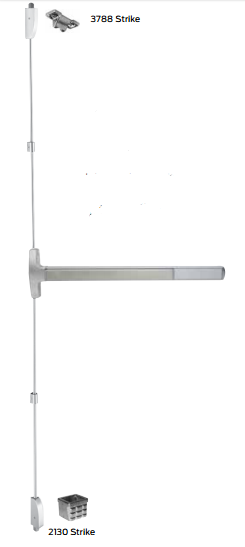

Falcon F 24V EO Vertical Rod Fire Exit Hardware - Exit Only | Panic Bar for Emergency Doors | Commercial Buildings & Schools Safety Device

24/25 Series Exit Devices

Engineered for durability and flexibility, the 24/25 Series Exit Devices are ideal for high-traffic environments including offices, churches, retail, hospitality, education, and healthcare facilities. These versatile devices are designed for both interior and exterior use, supporting new construction and retrofit applications.

Constructed from extruded aluminum, the 24/25 Series delivers superior strength and impact resistance. The streamlined design eliminates exposed screws or rivets on the device’s back, providing a clean and attractive installation. A stainless steel push pad cover offers a scratch-resistant surface, while flush-end caps help protect against damage in demanding settings.

Features & Benefits:

• Supports frequent traffic in demanding environments

• Patent deadlocking technology enhances security

• One trim input design enables compatibility with multiple trim options

• Narrow stile center case ideal for aluminum storefront doors

• Includes both panic exit and fire exit hardware for single and double doors

• Available in Rim, Surface Vertical (SV), Concealed Vertical (CV), and Mortise (M) configurations

Device Types:

• 24 Series:

  • Rim: 24-R, F-24-R

  • Surface Vertical: 24-V, F-24-V

  • Concealed Vertical (Wood Doors): 24-CWDC, F-24-CWDC

• 25 Series:

  • Rim: 25-R, F-25-R

  • Surface Vertical: 25-V, F-25-V

  • Concealed Vertical: 25-C, F-25-C

  • Mortise: 25-M, F-25-M

Design Options:

• 6 functions / 9 finishes

• 9 lever designs for customizable aesthetics

Warranty:

• 10-Year Mechanical Warranty

• 1-Year Electro-Mechanical Warranty

Available Finishes:

• US3 605 – Bright Brass

• US4 606 – Satin Brass

• US10 612 – Satin Bronze

• US11 643e – Aged Bronze*

• US15 619 – Satin Nickel*

• US19 622 – Matte Black*

• US26 625 – Bright Chromium

• US26D 626 – Satin Chromium

• US28 628 – Anodized Aluminum

• US32 629 – Bright Stainless Steel

• US32D 630 – Satin Stainless Steel
