12V Electric Drop Bolt Lock - Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay - Ideal for Offices, Warehouses & Smart Homes
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
18091251
Description

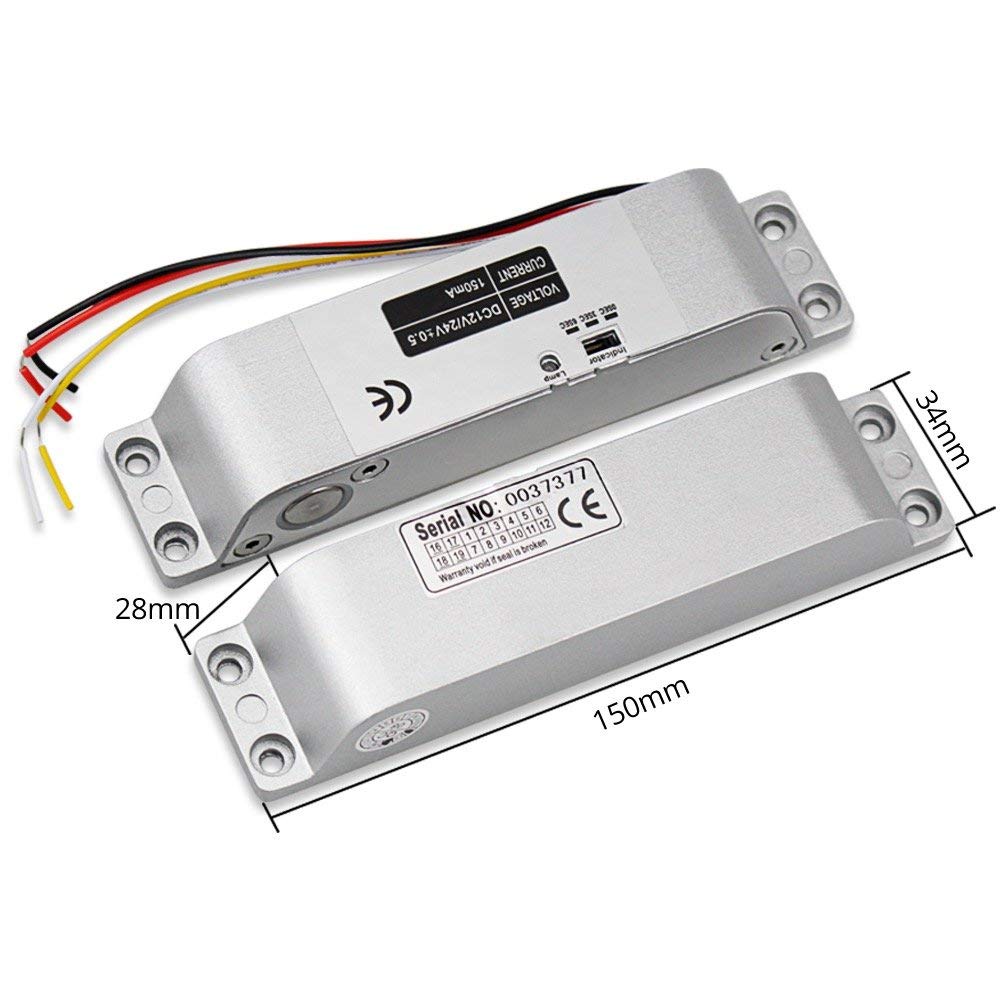

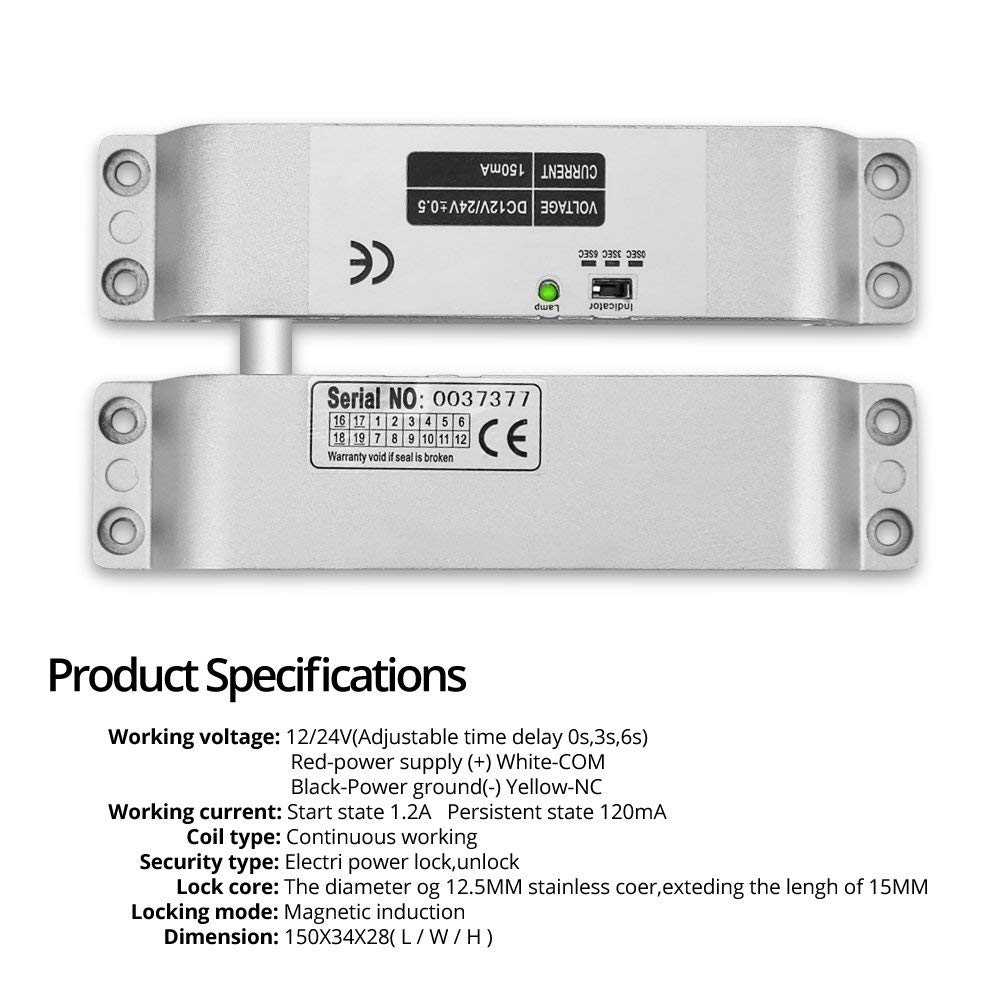

Features:1. NC mode - (locked while supplied with power), fail safe mode.2. Installation: unfold install (surface mounted).3. Material: Aluminum alloy material.4. With time delay: 0s, 3s, 6s.5. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.6. Surface scrub treatment, durable and wear-resistant. 7. Lock body use hexagon screw, fixed panel, anti-theft and more security.Specifications:Model Name: L-XXS Dimensions: 150x34x28mmLock core: The diameter 12.5MM, extending the length of 15MM Working Voltage: DC12VWorking current: Start state 1.2A Persistent state 120mAOperating Mode: NC (locked while supplied with power), fail safe modeWires: red to "NC", black to "GND".Warm Note: yellow line and white line are useless, don't need to be connected. Package Including:1 x Electric Drop Bolt Lock1 x Bag of installation kit
Features
1, NC Mode Fail-safe type, unlocked when power off, locked when power on.
2, Installation unfold install (surface mounted).

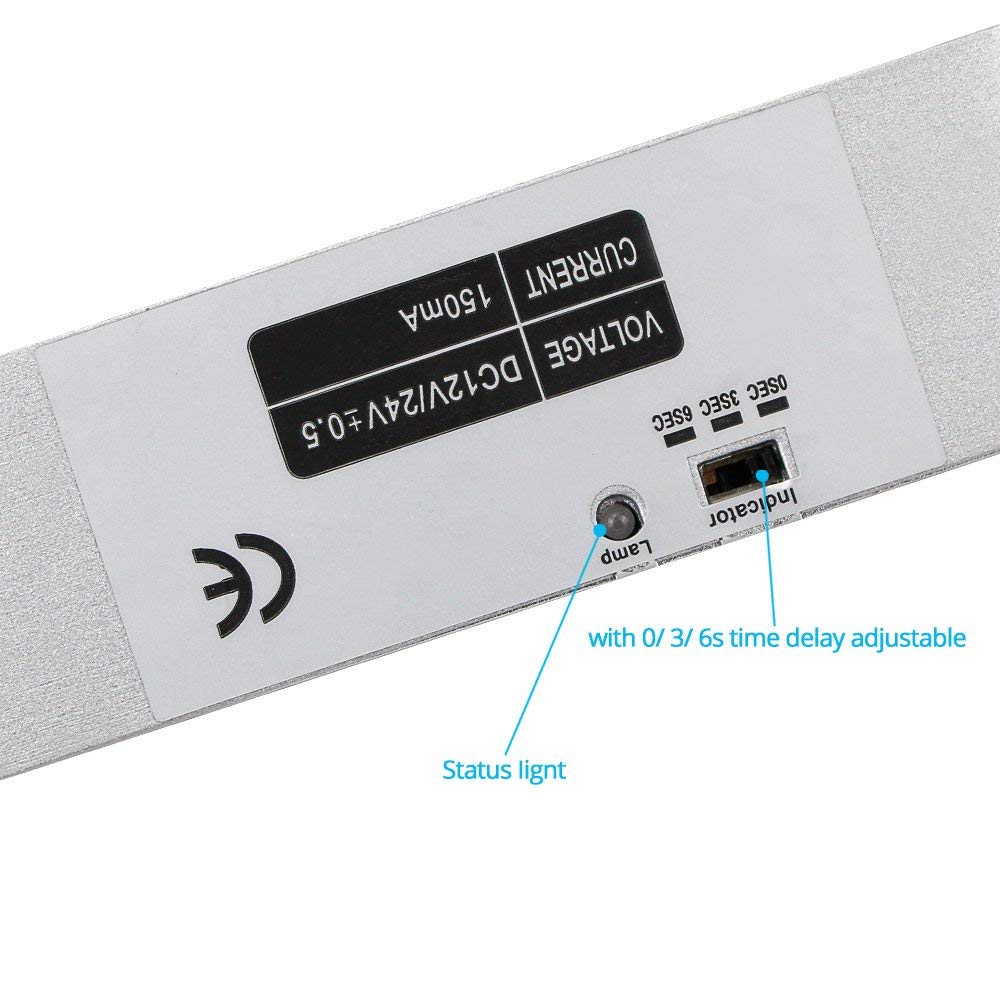

3, With time delay 0s, 3s, 6s
4, Wires red to "NC", black to "GND". yellow line and white line are useless, don't need to be connected.
5, Suitable For Wooden door, Glass door, Metal door, Fireproof door, etc.
